API 682 4th edition product range

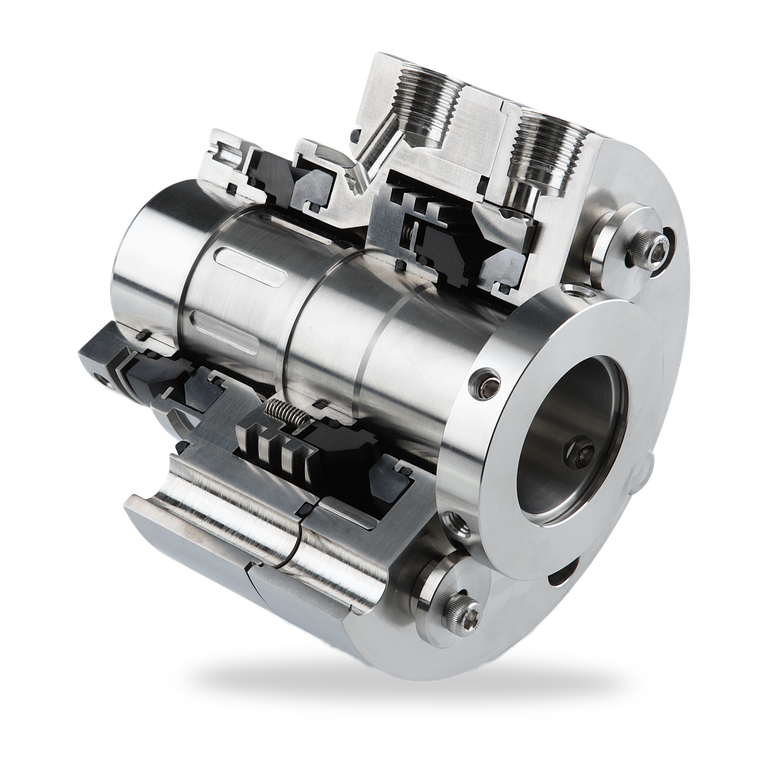

H75VA4-S H75VA4-S
  • API 682 Category 2 and 3, Type A, Arrangement 1 seal
  • Single seal
  • Balanced
  • Cartridge unit
  • Bi-directional design
  • Rotating multiple springs
  • Integrated pumping device available

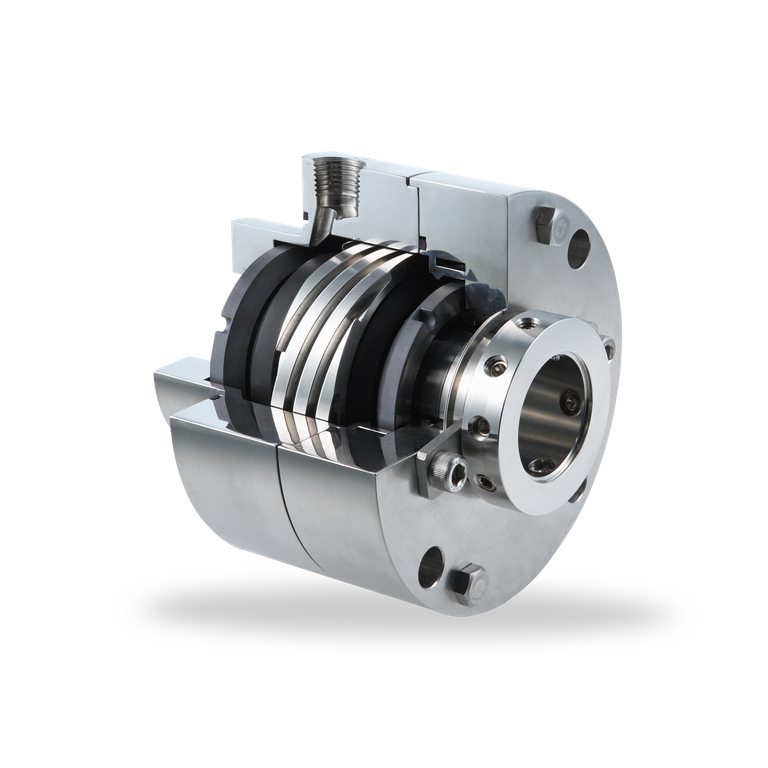

MBS682 MBS682
  • API 682 Category 2 and 3, Type C, Arrangement 1 seal
  • Single seal
  • Balanced
  • Cartridge unit
  • Rotating metal bellows
  • Shrink fitted seal ring and solid mating ring
WEF6  Water cooler WEF6
Water cooler
Heat exchangers of the WEF6 range are used to cool process/barrier fluids in seal supply circuits. WEF6 heat exchangers are fully compliant with API 682 4th edition regulations. The process/barrier medium is directed through the tube, and the cooling medium is directed through the shell.
Venting and draining of the process/barrier medium side as well as the cooling water side is ensured. In addition, the heat exchangers can also be combined with a temperature instrument in the supply line to the mechanical seal (optional in accordance with API 682 4th edition).
SPT6  Temperature indicator SPT6
Temperature indicator
The measuring unit of the SPT6000A4 range is used to visually monitor the operating temperature.
The measuring unit consists of a bi-metallic temperature gauge (NG100) with protective sleeve installed in a measuring block incl. drain connection.
ZY6  Cyclone separator ZY6
Cyclone separator
The ZY6A4 range is available in three versions:
ZYA6000A4
Cyclone separator for high flow rates and high pressures.
ZYB6000A4
Cyclone separator for high flow rates and high pressures; 100 % X-ray capability.
ZYC6000A4
Cast version, block-type design with integral flanges.
SPX6  Flush unit SPX6
Flush unit
The EagleBurgmann flush unit of the SPX6000A4 range consist of a manifold with integrated inline filter supplied together with a needle valve and pressure gauge. Optional available with temperature gauge and/or flow indicator. The unit is used to control the flushing of a mechanical seal.
TSA6  Barrier/buffer fluid system TSA6
Barrier/buffer fluid system
The EagleBurgmann barrier/buffer fluid systems of the TSA6000A4 range meet all the requirements to supply mechanical seals in accordance with the API682 4th edition guidelines. The vessels are equipped with all essential connections for fitting additional components.
The range is available in two standard vessel sizes with dished heads, and a bottom-flanged version which can be dismantled (TSB6000A4) is also available.
The modular system allows the TSA6000A4 vessels to be combined with a wide range of system components such as level transmitter, pressure transmitter, base frame, etc.
GSS6000  Gas supply system GSS6000
Gas supply system
  • Safe operation due to incorporated pressure regulator with upstream filter
  • System mounted on a plate
  • Easy wall or rack mounting
LSA6  Leakage collection reservoir LSA6
Leakage collection reservoir
The EagleBurgmann leakage control systems of the LSA6000 range in accordance with API Plan 65A consist of a leakage collection tank with integrated orifice and overflow pipe. The level can be monitored with the differential pressure transmitter which is supplied together with a five-way manifold valve.
QFT6  Quench system QFT6
Quench system
Quench fluid supply systems are used with single mechanical seals. They act as a convenient fluid reservoir. The QFT6000A4 stainless steel tank is equipped with a sight-glass for monitoring the MIN/MAX filling level and can be fastened with a lug fixture.

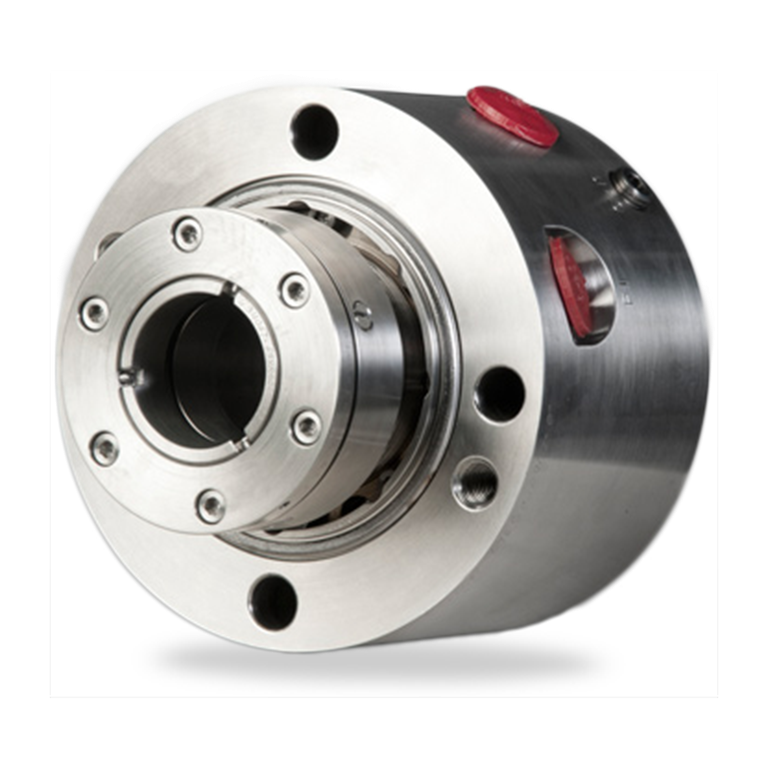

LL9UC LL9UC
  • API 682 Category 2 and 3, Type A, Arrangement 1 seal
  • Single seal
  • Balanced
  • Cartridge unit
  • Rotating multiple springs
  • Solid seal faces

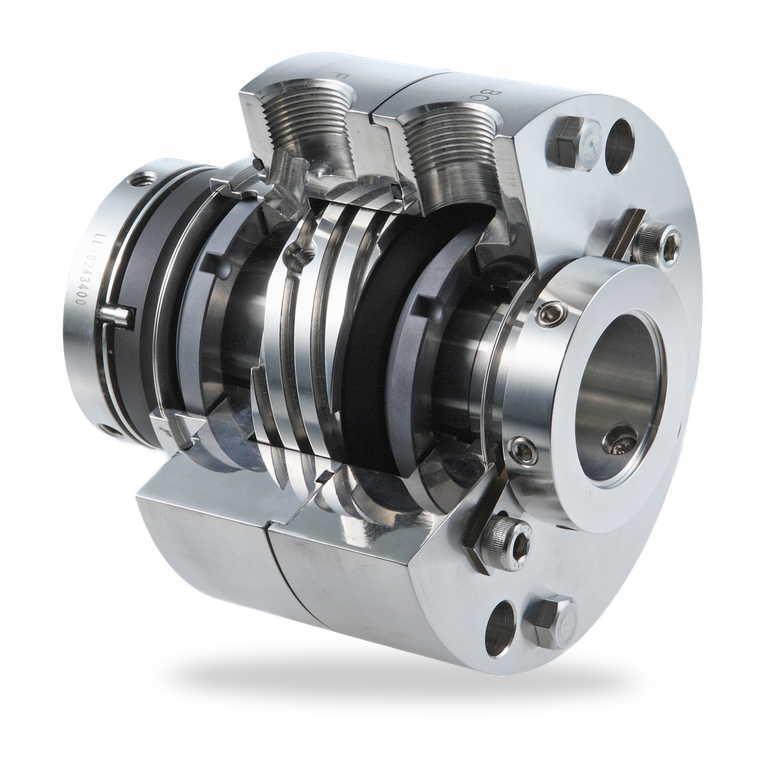

MBS682-PTA MBS682-PTA
  • API 682 Category 2 and 3, Type C, Arrangement 2 and 3 seal
  • Dual seal in face-to-back arrangement
  • Balanced
  • Cartridge unit
  • Rotating metal bellows
  • Shrink fitted seal rings and solid mating rings
WEL6  Air cooler WEL6
Air cooler
Heat exchangers of the WEL6000A4 range (shown here: WEL6002A4) are used to cool process/barrier fluids in seal supply circuits. The heat exchangers are made of helical, laser-welded finned tubes. The cooling medium is ambient air. It is important, therefore, for WEL heat exchangers to be installed in well ventilated places indoors or, ideally, outdoors. There is a choice of three different basic versions of the WEL6 range as well as being supplied fully assembled together with valves, base frame and other system components.
TSB6  Barrier/buffer fluid system TSB6
Barrier/buffer fluid system
The EagleBurgmann barrier/buffer fluid systems of the TSB6000A4 range meet all the requirements to supply mechanical seals in accordance with the API682 4th edition guidelines. The vessels are equipped with all essential connections for fitting additional components.
TSB6 bottom-flanged vessels are available in two standard sizes. A version with dished heads (TSA6000A4) is also available.
The modular system allows the TSB6000A4 vessels to be combined with a wide range of system components, such as level transmitter, pressure transmitter, base frame, etc.
GSS6001  Gas supply system GSS6001
Gas supply system
  • Safe operation thanks to incorporated pressure regulator with upstream filter
  • System mounted on a plate
  • Easy wall or rack mounting
LSB6  Leakage collection reservoir LSB6
Leakage collection reservoir
In accordance with API Plan 65B, the EagleBurgmann leakage control systems of the LSB6000 range consist of a leakage collection tank with valve and overflow pipe. The level can be monitored with the differential pressure transmitter which is supplied together with a five-way manifold valve.
H75A4-T H75A4-T
  • API 682 Category 2 and 3, Type A, Arrangement 2 and 3 seal
  • Dual seal in face-to-back arrangement
  • Balanced
  • Cartridge unit
  • Rotating multiple springs
  • Integrated pumping device
  • Suitable for pressure reversals
MBS682P-D MBS682P-D
  • API 682 Category 2 and 3, Type C, Arrangement 3 seal
  • Dual seal in back-to-back arrangement
  • Balanced
  • Cartridge unit
  • Rotating metal bellows
  • Shrink fitted seal rings and solid mating rings
SPB6 Barrier fluid system  with bladder accumulator SPB6 Barrier fluid system
with bladder accumulator
Pressurized barrier system (closed circuit) for use in seal systems with high pressures and/or for hazardous/environmentally harmful processes. The SPB6000A4 (Plan 53B) range is available with a pressure accumulator, cooler (finned tube, water or air cooler with fan) and a wide range of instruments.
A refilling unit has to be provided.
LSC6  Leakage collection reservoir LSC6
Leakage collection reservoir
The EagleBurgmann leakage control systems of the LSC6000A4 range are utilized to collect condensing or mixed phase leakage - vapor passing through. A level indicator is installed to determine when the tank needs to be drained. A pressure gauge tracks and indicates seal leakage.
LL9DTUU LL9DTUU
  • API 682 Category 2 and 3, Type A, Arrangement 2 or 3 seal
  • Dual seal in face-to-back arrangement
  • Same seal size on inboard and outboard seal
  • Balanced
  • Cartridge unit
  • Rotating multiple springs
  • Solid seal faces
LY9TC LY9TC
  • API 682 Category 2 and 3, Type C, Arrangement 1 seal
  • Single seal
  • Balanced
  • Cartridge unit
  • Stationary metal bellows
  • Shrink fitted seal ring and solid mating ring
SPC6 Barrier fluid system  with piston accumulator SPC6 Barrier fluid system
with piston accumulator
Pressurized barrier system (closed circuit) for use in seal systems with high pressures and/or for hazardous/environmentally harmful processes.
The SPC6000A4 (API Plan 53C) range is available with a pressure booster, cooler (finned tube, water or air cooler with fan) and a wide range of instruments.
A refilling unit must be provided.
SPP6  Leakage detection system SPP6
Leakage detection system
The EagleBurgmann leakage control systems of the SPP6006A4 range consist of a pressure transmitter which is supplied together with a block and bleed valve as well as an orifice and drain valve.
H75A4-C H75A4-C
  • API 682 Category 2 and 3, Type A, Arrangement 2 seal
  • Dual seal in face-to-back arrangement
  • Non-contact outer seal (containment seal)
  • Balanced
  • Cartridge unit
  • Rotating multiple springs
LY9DZTT LY9DZTT
  • API 682 Category 2 and 3, Type C, Arrangement 2 and 3 seal
  • Dual seal in face-to-back arrangement
  • Balanced
  • Cartridge unit
  • Stationary metal bellows
  • Shrink fitted seal rings and solid mating rings
LL9DTUE LL9DTUE
  • API 682 Category 2 and 3, Type A, Arrangement 2 seal
  • Dual seal in face-to-back arrangement
  • Dry contact outer seal (containment seal)
  • Balanced
  • Cartridge unit
  • Solid seal faces
LY9DSTT LY9DSTT
  • API 682 Category 2 and 3, Type C, Arrangement 3 seal
  • Dual seal in face-to-face arrangement
  • Balanced
  • Cartridge unit
  • Stationary metal bellows
  • Shrink fitted seal rings and solid mating rings
H75LG4-C H75LG4-C
  • API 682 Category 2 und 3, Type A, Arrangement 2 seal
  • Dual seal in face-to-back arrangement
  • Cartridge unit
  • Rotating multiple springs
  • Dry non-contact outer seal (containment seal)
LY9SA LY9SA
  • API 682 Category 2 and 3, Type B, Arrangement 1 seal
  • Single Seal
  • Balanced
  • Cartridge unit
  • Rotating metal bellows
  • Shrink fitted seal ring and solid mating ring
H75A4-B H75A4-B
  • API 682 Category 2 and 3, Type A, Arrangement 3 seal
  • Dual seal in back-to-back arrangement
  • Balanced
  • Cartridge unit
  • Rotating multiple springs
  • Integrated pumping device
  • Suitable for pressure reversals
LY9DTSS LY9DTSS
  • API 682 Category 2 and 3, Type B, Arrangement 2 and 3 seal
  • Dual seal in face-to-back arrangement
  • Same seal size of inboard and outboard seal
  • Balanced
  • Cartridge unit
  • Rotating metal bellows
  • Shrink fitted seal rings and solid mating rings
LL9DKUU LL9DKUU
  • API 682 Category 2 and 3, Type A, Arrangement 3 seal
  • Dual seal in back-to-back arrangement
  • Same size of inboard and outboard seal
  • Balanced
  • Cartridge unit
  • Rotating multiple springs
  • Solid seal faces
LY9DZSS LY9DZSS
  • API 682 Category 2 and 3, Type B, Arrangement 3 seal
  • Dual seal in back-to-back arrangement
  • Same seal size of inboard and outboard seal
  • Balanced
  • Cartridge unit
  • Rotating metal bellows
  • Shrink fitted seal rings and solid mating rings
CGSH-KD CGSH-KD
  • API 682 Category 2 and 3, Type A, Arrangement 3 seal
  • Dual seal in back-to-back arrangement
  • Cartridge unit
  • Independent of direction of rotation
    (with U-grooves)
  • Gas-lubricated
  • Contact free operation, no friction
  • Rotating multiple springs

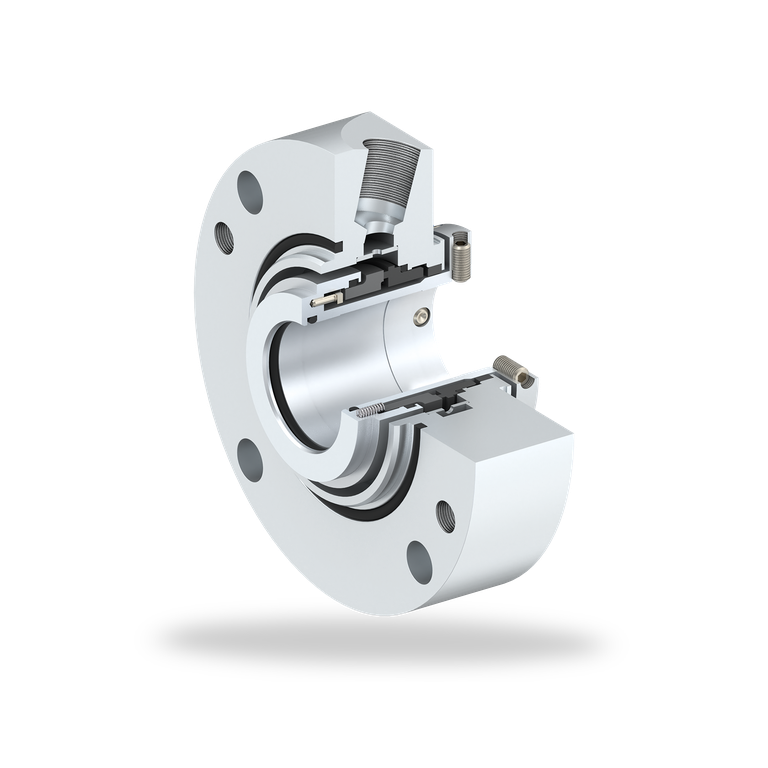

APItex-S APItex-S
  • Single seal
  • Cartridge unit
  • Category 1, Type A, Arrangement 1
  • Balanced
  • Independent direction of rotation
  • Shrink-fitted seal face
  • Solid mating ring

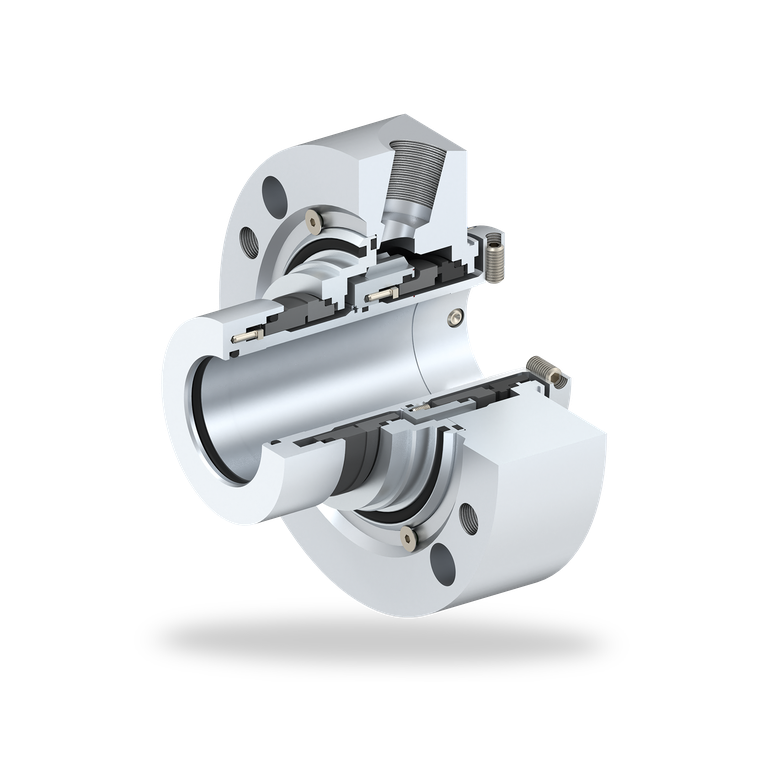

APItex-T APItex-T
  • API 682 Category 1, Type A, Arrangement 2 or 3 seal
  • Dual seal in face-to-back arrangement
  • Balanced
  • Cartridge unit
  • Independent of direction of rotation
  • Shrink-fitted seal faces
  • Solid mating rings
LEK777 LEK777
  • API 682 Category 2 and 3, Type A, Arrangement 1 seal
  • Single seal
  • Balanced
  • Cartridge unit
  • Stationary multiple springs
  • Solid seal faces
SH SH
  • API 682 Category 2 and 3, Type A, Arrangement 1 seal
  • Single seal
  • Balanced
  • Cartridge unit
  • Stationary multiple springs
  • Shrink-fitted seal ring
  • Solid mating ring
LL9DJUU LL9DJUU
  • API 682 Category 2 and 3, Type A, Arrangement 2 and 3 seal
  • Dual seal in face-to-back arrangement
  • Same size of inboard and outboard seal
  • Balanced
  • Cartridge unit
  • Stationary multiple springs
  • Solid seal faces
LL9DJUE LL9DJUE
  • API 682 Category 2 and 3, Type A, Arrangement 2 seal
  • Dual seal in face-to-back arrangement
  • Dry contact outer seal (containment seal)
  • Balanced
  • Cartridge unit
  • Stationary multiple springs
  • Solid seal faces
LL9DSUU LL9DSUU
  • API 682 Category 2 and 3, Type A, Arrangement 3 seal
  • Dual seal in face-to-face arrangement
  • Same size of inboard and outboard seal
  • Balanced
  • Cartridge unit
  • Stationary multiple springs
  • Solid seal faces
SH-D SH-D
  • API 682 Category 2 and 3, Type A, Arrangement 3 seal
  • Dual seal in face-to-face arrangement
  • Balanced
  • Cartridge unit
  • Stationary multiple springs
  • Shrink-fitted seal rings
  • Rugged mating rings
HRGS-DD HRGS-DD
  • API 682 Category 2 and 3, Type A, Arrangement 3 seal
  • Dual seal in face-to-back arrangement
  • Gas-lubricated
  • Balanced
  • Cartridge unit
  • Independent of direction of rotation
  • Stationary springs
  • Contact free operation, no friction
LNF992 LNF992
  • API 682 Category 2 and 3, Type A, Arrangement 3 seal
  • Dual seal in face-to-back arrangement
  • Gas-lubricated
  • Balanced
  • Cartridge unit
  • Stationary multiple springs
  • Independent of direction of rotation
  • Solid seal faces
RGS-D RGS-D
  • API 682 Category 2 and 3, Type A, Arrangement 3 seal
  • Dual seal in back-to-back arrangement
  • Gas-lubricated
  • Balanced
  • Cartridge unit
  • Independent of direction of rotation
  • Stationary spring on process and atmospheric side
  • Contact free operation, no friction
API 682 4th edition
API 682 4th edition
API piping plans
API piping plans

Get a condensed overview of all piping plans established by the API 682 4th edition guidelines...
