EagleBurgmann India Product range

Class P balanced seals  P03, P04, P13, P14 Class P balanced seals
P03, P04, P13, P14
  • Rotating multi-spring pusher seals
  • Balanced
  • Compact in length
  • Available as O-Ring or wedge variants
  • Uniform seal face loading
  • Circlip design for ease of assembly
    in P13 / P14 seals
  • Independent of direction of rotation
  • Available as single, dual and tandem arrangements
Low temperature seals  Y12, Y13, Y33, Y17, Y18, Y37 Low temperature seals
Y12, Y13, Y33, Y17, Y18, Y37
  • Rotating bellows seal
  • Balanced
  • No dynamic O-Ring, no hang-up, no shaft sleeve damage
  • Uniform seal face loading
  • Independent of direction of rotation
  • Ideally suited for highly corrosive and abrasive media
  • Compact design
Dry running seal AD5 Dry running seal
AD5
  • Rotating multi-spring pusher seal
  • Balanced
  • Independent of direction of rotation
  • Special face material Teflon® eliminates the contamination of media
  • Ideally suited for pharmaceutical and food industry

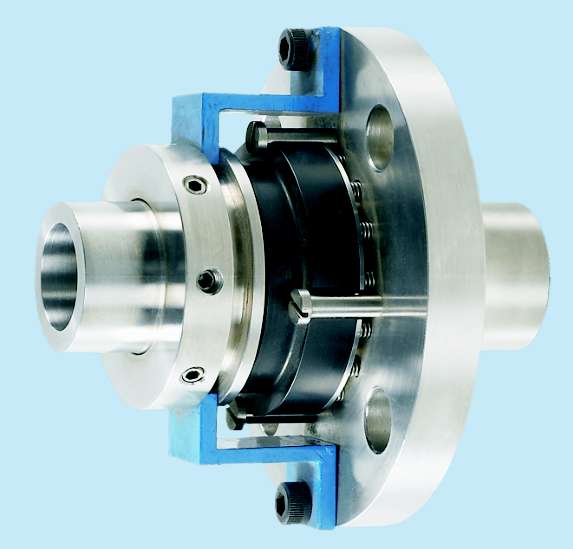

SP series split seals  SP1, SP2 SP series split seals
SP1, SP2
  • Stationary pusher seal
  • Few parts to assemble
  • Disc loaded seal faces instead of coil spring
  • Independent of direction of rotation
  • Ideal for large size pumps, mixers and agitators
High speed seals  HPS, HYS High speed seals
HPS, HYS
  • Stationary seal
  • Balanced
  • Stationary seal
  • Balanced
  • Uniform seal face loading
  • Independent of direction of rotation
  • Available as pusher or bellows version
  • Available as single, double and tandem arrangements
  • Ideally suited for high speed pumps

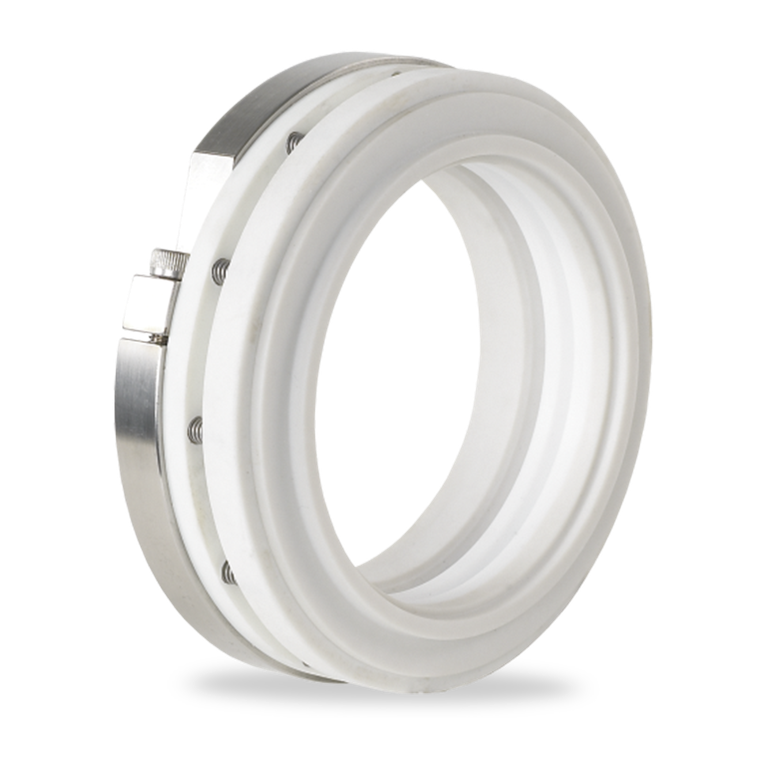

Teflon bellows seal  Y29 Teflon bellows seal
Y29
  • Rotating outside mounted
    Teflon® bellows seal
  • Flexible Teflon® bellows takes more shaft run-outs
  • Independent of direction of rotation
  • Less number of parts in contact with media
  • Silicon carbide faces for highly abrasive media
Class P unbalanced seals  P01, P02, P11, P12 Class P unbalanced seals
P01, P02, P11, P12
  • Rotating multi-spring pusher seals
  • Unbalanced
  • Compact in length
  • Available as O-Ring or wedge variants
  • Uniform seal face loading
  • Circlip design for ease of assembly
    in P11 / P12 seals
  • Independent of direction of rotation
  • Available as single, dual and tandem arrangements
High temperature seals  Y16, Y19, Y66, Y99 High temperature seals
Y16, Y19, Y66, Y99
  • Rotating bellows seal
  • Balanced
  • No dynamic O-Ring, no hang-up, no shaft sleeve damage
  • Uniform seal face loading
  • Independent of direction of rotation
  • Ideally suited for highly corrosive and abrasive media
  • Compact design
Dry running seals DR1, DR2 Dry running seals
DR1, DR2
  • Rotating multi-spring pusher seal
  • Balanced
  • Uniform seal face loading
  • Special carbon material with dry running capability
  • Single-outside mounted arrangement (DR1)
  • Single and back-to-back arrangement (DR2)

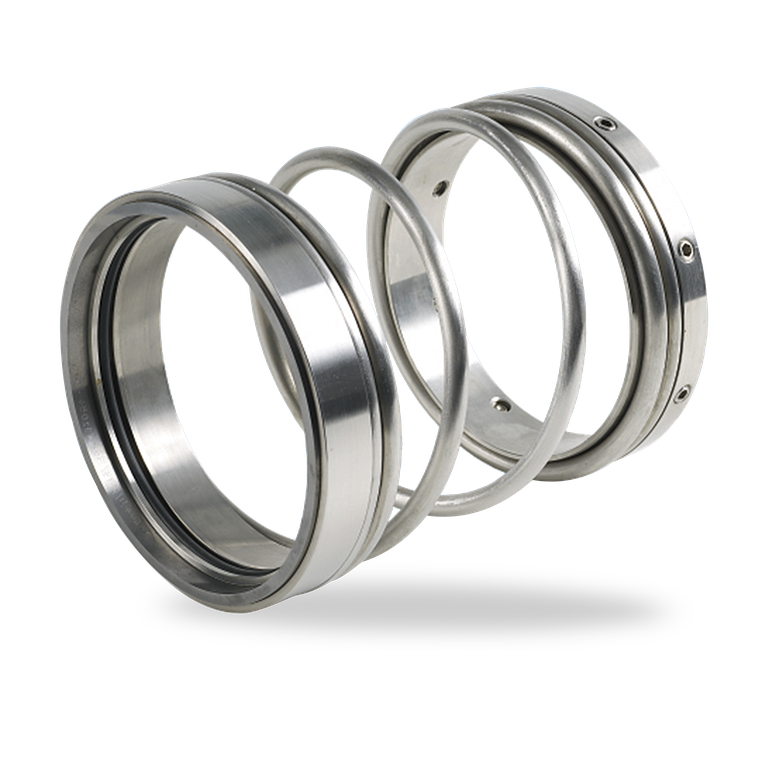

Class E balanced seals  E03, E04, E13, E14 Class E balanced seals
E03, E04, E13, E14
  • Rotating single-spring pusher seals
  • Balanced
  • Robust seal design
  • Available as O-Ring or wedge variants
  • Hard/hard seal face combination available
  • Independent of direction of rotation
    (E13, E14)
  • Available as single, dual and tandem arrangements
High temperature advanced  seals YE400, Y014 High temperature advanced
seals YE400, Y014
  • Stationary bellows seal
  • Balanced
  • Uniform seal face loading
  • Independent of direction of rotation
Class E unbalanced seals  E01, E02, E11, E12 Class E unbalanced seals
E01, E02, E11, E12
  • Rotating single-spring pusher seals
  • Unbalanced
  • Robust seal design
  • Available as O-Ring or wedge variants
  • Hard/hard seal face combination available
  • Independent of direction of rotation
    (E11, E12)
  • Available as single, dual and tandem arrangements
High temperature stationary  seals Y14, Y44 High temperature stationary
seals Y14, Y44
  • Stationary bellows seal
  • Balanced
  • Uniform seal face loading
  • Independent of direction of rotation
  • Self-cleaning bellows design
Class P balanced seals  P23, P24, P31 Class P balanced seals
P23, P24, P31
  • Rotating multi-spring pusher seals
  • Balanced
  • Compact in length
  • Available as O-Ring or wedge variants
  • Uniform seal face loading
  • Self-balanced seal with spring outside product design (P31)
  • Independent of direction of rotation
  • Available as single, dual and tandem arrangements
Dry running emission  containment seal Y11 Dry running emission
containment seal Y11
  • Stationary bellows seal
  • Uniform seal face loading
  • Independent of direction of rotation
  • Special carbon grade for dry running capability
  • Seal with low face pressure hence less seal face heat generation
  • Compact design
  • Mating ring with wave spring design
  • Vibration dampener for bellows
  • Outboard emission containment seal used along with inboard pusher or bellows seal
Class P unbalanced seals  P21, P22 Class P unbalanced seals
P21, P22
  • Rotating multi-spring pusher seals
  • Unbalanced
  • Compact in lenght
  • Available as O-Ring or wedge variants
  • Hard/hard seal face combination available
  • Uniform seal face loading
  • Exotic compatible metallurgy for hardware
  • Independent of direction of rotation
  • Available as single, dual and tandem arrangements
Hot water seal L9AW Hot water seal
L9AW
  • Rotating multi-spring pusher seals
  • Balanced
  • Compact in length
  • Uniform seal face loading
  • Circlip design for ease of assembly
  • Independent of direction of rotation
  • Specially designed seal faces prevent dry running
