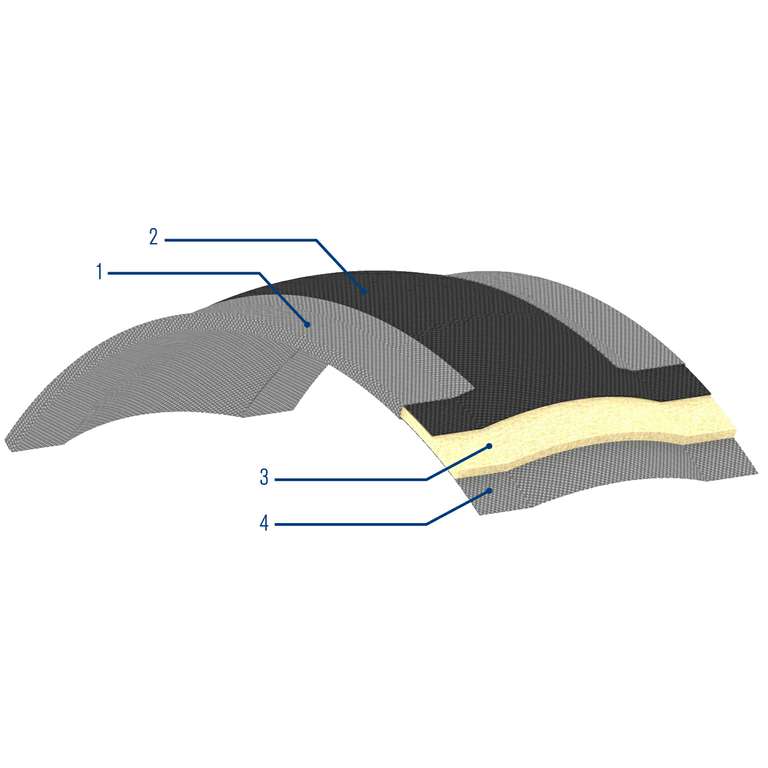

Item Description
1 Flange reinforcement
2 Pressure carrying layer / gas seal layer
3 Insulation layer
4 Support layer

Flexgen
expansion joints

Features

  • Multi layer design (Flexgen 2002: single layer construction)
  • Compensates for movements in several directions simultaneously
  • Can be delivered as fabric only or as preassembled unit
  • For dry condition
  • Custom made to fit actual working conditions

Advantages

  • Excellent flexibility
  • High chemical resistance
  • Reduced heat loss
  • Minimal reaction forces

Operating range

Temperature: -35 °C … +575 °C (-31 °F ... +1,070 °F)
Pressure: -0.14 bar ... 0.14 bar (-2 PSI ... 2 PSI)
Maximal axial movements: … 200 mm (8”)
Maximal lateral movements: … 80 mm (3”)

Standards and approvals

Documentation:
- EN 10204-2.2 certificate
- Safety Data Sheets (SDS) for individual materials

Functional description

Flexgen expansion joints safely absorb thermal expansion and misalignments of pipe and duct systems in dry and medium temperature area. Flexgen products compensate for movements in multiple directions simultaneously.



Product variants

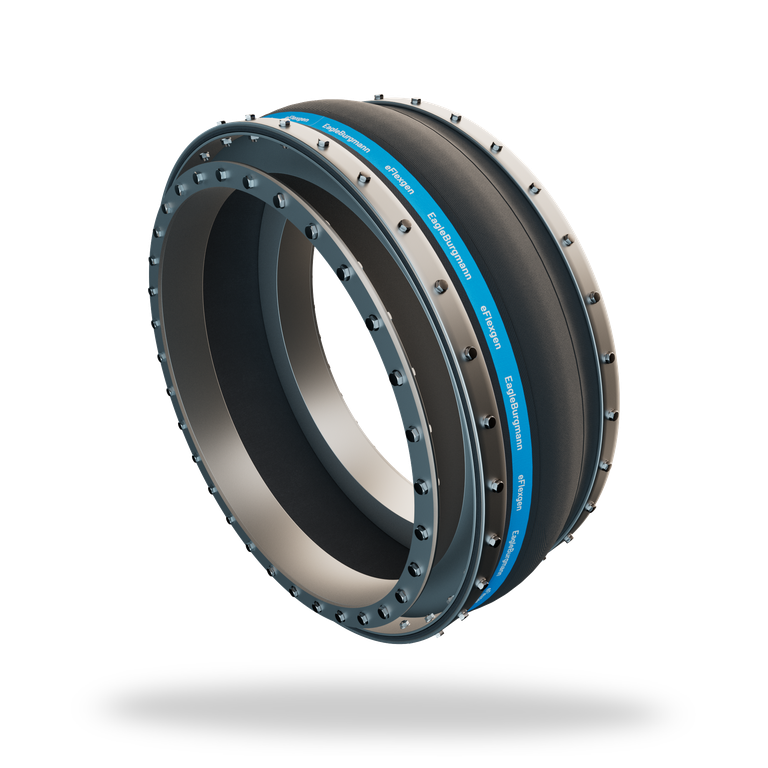

eFlexgen

eFlexgen

The main features of our new eFlexgen are lower emissions as well as increased robustness and performance. The multi-layer design that can withstand temperatures up to 575° C, have the ability to compensate for movements in all directions, and suitability for dry conditions. It can be delivered either as fabric only or as a preassembled unit. Additionally, it can be custom-made to fit the specific working conditions you have.

- Up to 90% lower emissions
- Improved safety
- Longer lifetime
- Saves energy in specific applications due to increased tightness
- Verified by Bureau Veritas

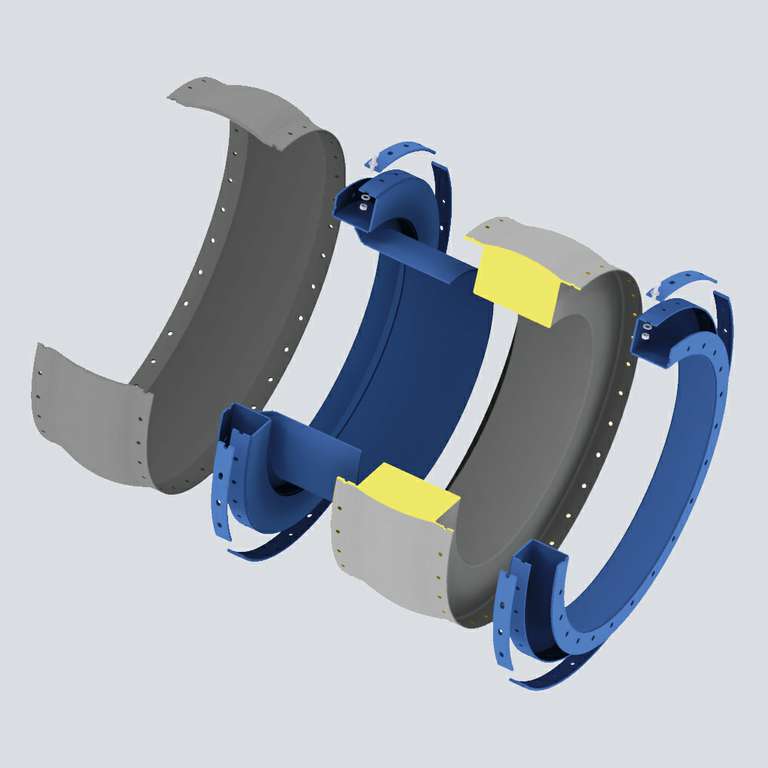

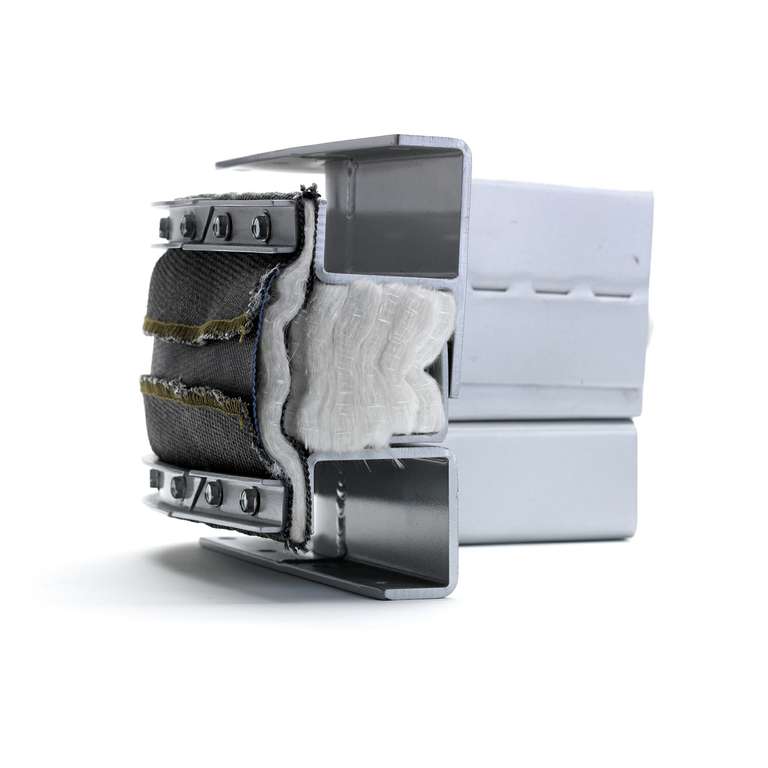

Pre-assembled units

Pre-assembled units

Pre-assembled expansion joint units consist of:

- Fabric expansion joint
- Metal frames/inner sleeves
- Gasket (optional)
- Fasteners

Frame material:
- Carbon steel
- Stainless steel
- Heat resistant steel

Pre-assembled expansion joint units can be supplied with surface treatment that is corrosion resistant (standard) and resistant to high temperatures. EagleBurgmann KE offers any RAL color code for the units. Units can be delivered with seaworthy packing or standard packing for road transportation.

Similar products

Acouseal expansion joint

  • Single layer design
  • Designed for acoustic demanding environment in GT inlets
  • Absorbs movements and vibrations in multiple directions
  • 100 % gas tight connection
  • Excellent and proven sound reducing properties

Combine-X expansion joints

  • Multi layer design
  • Compensates for movements in several directions simultaneously
  • Excellent form stability
  • Can be delivered as fabric only or as preassembled unit
  • Custom made to fit actual working conditions
  • Specifically designed for gas turbine systems

KE-Flex expansion joints

  • Single layer design
  • Compensates for movements in several directions simultaneously
  • Can be delivered as fabric only or as preassembled drop in unit
  • For dry and wet condition*
  • Custom made to fit actual working conditions

* Depending on material selection
Contact

Inquire about individual solutions

We develop and produce customer-specific special and individual solutions for every application.

Inquire now Discover reference projects
