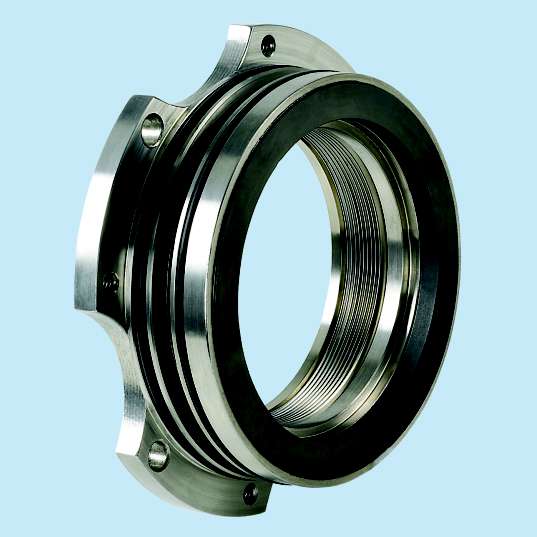

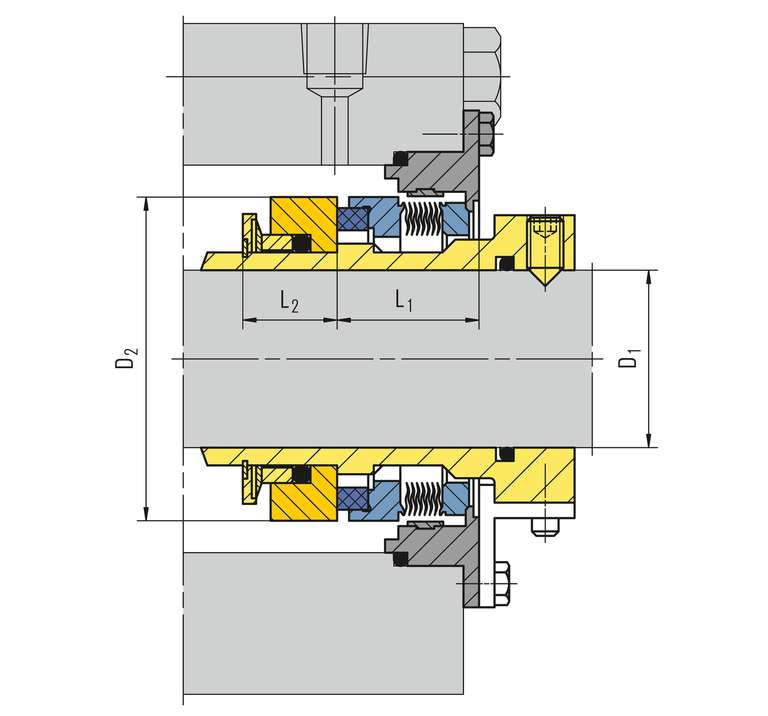

Dry running emission
containment seal Y11

Features

  • Stationary bellows seal
  • Uniform seal face loading
  • Independent of direction of rotation
  • Special carbon grade for dry running capability
  • Seal with low face pressure hence less seal face heat generation
  • Compact design
  • Mating ring with wave spring design
  • Vibration dampener for bellows
  • Outboard emission containment seal used along with inboard pusher or bellows seal

Advantages

  • Narrow cross-section allows the seal fitment in narrow stuffing boxes
  • Excellent dry running performance
  • Longer seal life as less seal face wear
  • Easy to install
  • Safety seal to contain fugitive emissions

Operating range

Shaft diameter:
d = 32 … 115 mm (1.25" … 4.52")
Pressure:
p = ... 20 bar (... 290 PSI)
wet dynamic containment
p = ... 31 bar (... 500 PSI)
wet and dry dynamic containment
p = ... 1 bar (... 14.5 PSI) dry dynamic
Temperature: t = ... +204 °C (... +400 °F)
Sliding velocity: vg = 25 m/s (82 ft/s)


(Consult EB for applications outside above limits).

Materials

Seal ring: Special grade carbon material
Mating ring: Silicon carbide
Secondary seals: FKM, FFKM
Bellows: AM 350
Metal parts: SS 316, other materials on request.

Recommended piping plans

API Plans 75, 76
