DX3S DanOne
metal expansion joints

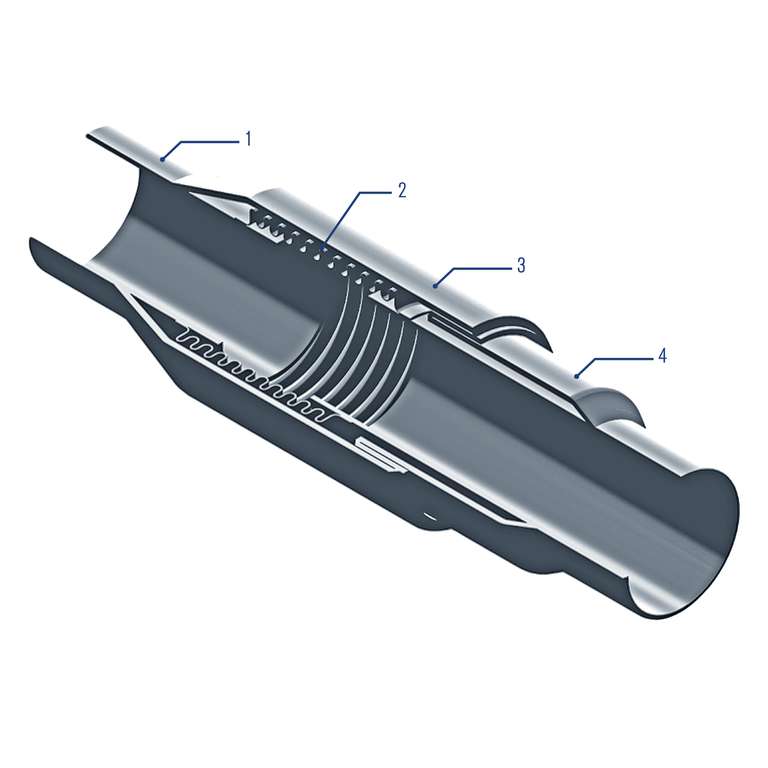

| Item | Description |
| 1 | Media/ line pipe |
| 2 | Bellows |
| 3 | Outer casing / shroud |
| 4 | Inner casing / shroud |
DX3S DanOne
metal expansion joints
Features
- Untied metal expansion joints mainly for district heating.
- External sealable shroud.
- Can be installed in series.
- One cycle / startup type expansion joint, for ease of installation.
- Designed for large axial movements.
Advantages
- No significant pressure drop - reduced need for pumps and general power consumption for moving media, compared to pipe loops.
- Less supporting structure or excavation required – Compared to pipe loops.
- Lower erosion rate (for abrasive media lines – compared to pipe loops with elbows).
- Multiply bellows with low spring rate and high cycle life.
Operating range
Temperature: ... 120 °C (248 °F)
Pressure: 16 barg (232 PSIG), 25 barg (362 PSIG)
Materials
- Bellows: 1.4541 (AISI 321)
- Connections: 1.0345 – (P235GH)
Other materials are available on request.
Standards and approvals
EJMA, (4-5) Cycles
NDT and documentation:
Can be provided per customer request e.g.,
material certificates and NDT test reports.
Recommended applications
- Building services industry
- District heating & cooling
- Water cooling systems
- Air and steam transport lines
Notes
Similar products
Inquire about individual solutions
We develop and produce customer-specific special and individual solutions for every application.
