Burajet 8032/HHP
Injection Device

Burajet 8032/HHP
Injection Device

Burajet 8032/HHP <br/>Injection Device

Burajet 8032/HHP
Injection Device

Features

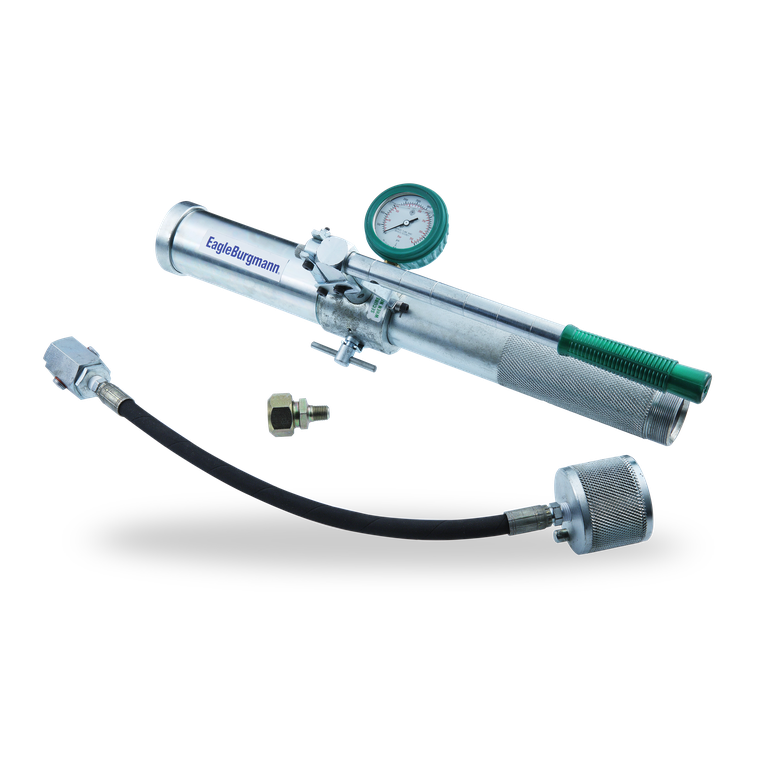

The Burajet injection gun 8032/ HHP is a hydraulic gun for fiber-injectable packings allowing easy injection of the compound into the stuffing box space. An injection gun can be used for multiple applications or machines.

Advantages

  • Easy to handle
  • Can be used multiple times on different machines
  • Greater distance from the machine is possible

Operating range

For supplying and topping up Burajet fiber injectable compound

Materials

It consists of the following components:
  • Hydraulic cylinder with hand lever
  • Nipple for lantern ring/flush water connection
  • Stop valve
  • Pressure hose with pressure gauge

Notes

The packing can be installed by hand while the equipment is stopped with the gland follower open. With the gland plate closed and while the equipment is stopped, the packing can be injected for the first time using the hydraulic injection gun 8032/HHP via the flush water/ lantern ring connection. If there is no connection, it may be attached later.

Conversion
Conversion to the fiber compound packing is problem-free and requires little technical equipment. Use the packing extractor 9611 to remove the old packing. Then retain the injectable fiber packings between two braided packing rings.

Similar products

Gasket cutter 9614

The gasket cutter 9614 is a manually operated cutting tool for on-site installation where there is no power supply. For cutting circular sealing rings.

Gasket nibbler 9615

The gasket nibbler 9615 is an electrically-driven gasket cutter with accessories. It is used to produce medium-sized batches of sealing rings and gaskets of any other shape.

Packing extractor 9611

The non-twisting, bendable, tension and compression-resistant form of the packing extractor 9611 allows packings to be gripped perfectly and removed without leaving anything behind, even in inaccessible stuffing box chambers. This special tool is ideal for removing compression packings from pumps, agitators, valves, fittings etc.
