Features

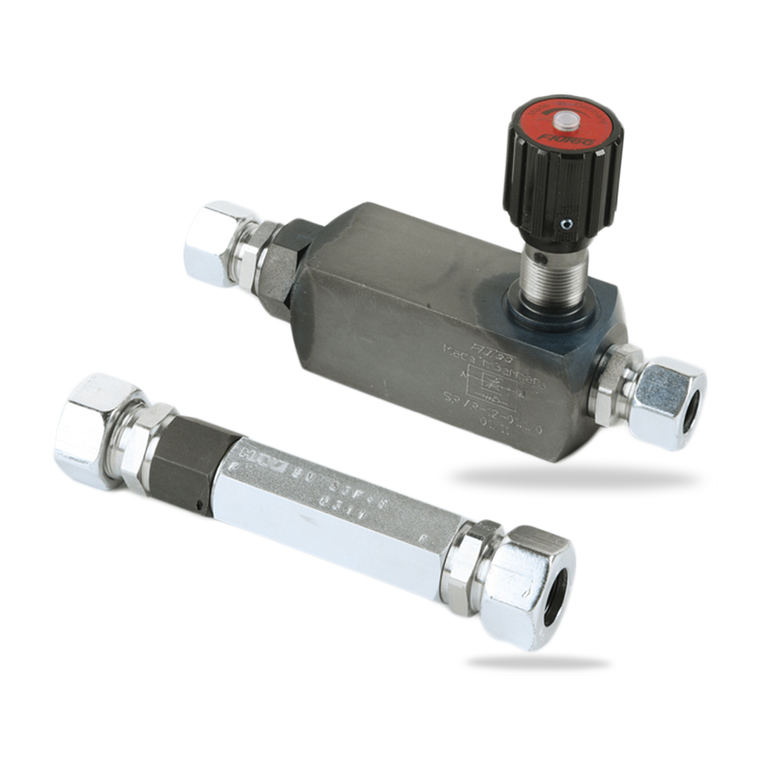

The distribution unit is used when two or more mechanical seals are to be supplied from a single barrier fluid unit of the SPA1000, SPA2000 or SPA3000 range. The VTE is suitable for hydraulic oil as barrier medium. It is delivered as a separate unit which the customer must install in the pipe work at a suitable position. There is a choice of two basic types:
VTE02/M...: Distribution unit for supplying two or more mechanical seals in between bearing pumps.
VTE../S...: Distribution unit for supplying two or more mechanical seals in different pumps. It contains an overflow valve and one flow control valve per seal. DRE pressure control units are necessary if different barrier pressures are used on the mechanical seals.

Advantages

  • Distribution unit for supplying several mechanical seals
  • Suitable for hydraulic oil



Product variants

Distribution unit for supplying two mechanical seals between bearing pumps
Designation Max. barrier
pressure
Allowable
temperature
Norm. Flow/
inlet (l/min)
Individual
current (l/min.)
Allowable
viscosity
range (mm²/s)
Suitable for
VTE02/M060 250 bar
(3,626 PSI)
-20 °C ... +80 °C
(-4 °F ... +176 °F)
6 2 x 3 10 ... 300 SPA1040/A01 (A02)
SPA1090/A01 (A02)
VTE02/M120 250 bar
(3,626 PSI)
-20 °C ... +80 °C
(-4 °F ... +176 °F)
12 2x6 l/min. 10 ... 300 SPA2020/A01 (A02)
SPA2050/A01 (A02)
SPA2120/A01 (A02)
VTE02/M230 250 bar
(3,626 PSI)
-20 °C ... +80 °C
(-4 °F ... +176 °F)
23 2 x 11.5 10 ... 300 SPA3020/A01 (A02)
SPA3050/A01 (A02)
SPA3120/A01 (A02)

Distribution unit for supplying two or more mechanical seals in different pumps
Designation Max. barrier
pressure
Allowable
temperature
Norm. Flow/
inlet (l/min.)
Individual
current (l/min.)
Allowable
viscosity
range (mm²/s)
Suitable for Quantity of
supplied
mechanical
seals
VTE02/S020 210 bar
(3,046 PSI)
-20 °C ... +70 °C
(-4 °F … +158 °F)
6 2 x 2.5 2.8 ... 380 SPA1040/A01 (A02)
SPA1090/A01 (A02)
2
VTE02/S050 210 bar
(3,046 PSI)
-20 °C ... +70 °C
(-4 °F … +158 °F)
12 2 x 5 2.8 ... 380 SPA2020/A01 (A02)
SPA2050/A01 (A02)
SPA2120/A01 (A02)
2
VTE02/S110 210 bar
(3,046 PSI)
-20 °C ... +70 °C
(-4 °F … +158 °F)
23 2 x 11 2.8 ... 380 SPA3020/A01 (A02)
SPA3050/A01 (A02)
SPA3120/A01 (A02)
2
VTE03/S030 210 bar
(3,046 PSI)
-20 °C ... +70 °C
(-4 °F … +158 °F)
12 3 x 3.5 2.8 ... 380 SPA2020/A01 (A02)
SPA2050/A01 (A02)
SPA2120/A01 (A02)
3
VTE03/S072 210 bar
(3,046 PSI)
-20 °C ... +70 °C
(-4 °F … +158 °F)
23 3 x 7 2.8 ... 380 SPA3020/A01 (A02)
SPA3050/A01 (A02)
SPA3120/A01 (A02)
3
VTE04/S021 210 bar
(3,046 PSI)
-20 °C ... +70 °C
(-4 °F … +158 °F)
12 4 x 2.5 2.8 ... 380 SPA2020/A01 (A02)
SPA2050/A01 (A02)
SPA2120/A01 (A02)
4
VTE04/S052 210 bar
(3,046 PSI)
-20 °C ... +70 °C
(-4 °F … +158 °F)
23 4 x 5 2.8 ... 380 SPA3020/A01 (A02)
SPA3050/A01 (A02)
SPA3120/A01 (A02)
4

Versions for supplying more than four mechanical seals on request.

Similar products

DHE Pressure accumulator

The DHE consists of an accumulator, a pressure gauge with a shut-off valve and a check valve. The DHE can also be retrofitted to a SPA (Conversion kit no.: DHE140/R001-00).

DRE Pressure control unit

The pressure control unit is used for setting different levels of barrier pressure when supplying several individual mechanical seals via an SPA with a VTE. There is a choice of four basic types.
