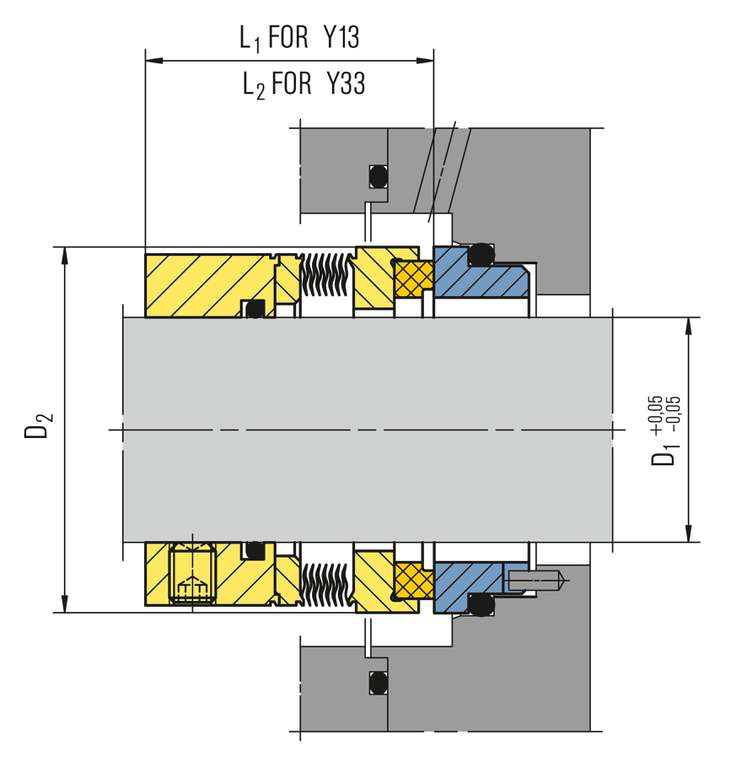

Low temperature seals
Y12, Y13, Y33, Y17, Y18, Y37

Features

  • Rotating bellows seal
  • Balanced
  • No dynamic O-Ring, no hang-up, no shaft sleeve damage
  • Uniform seal face loading
  • Independent of direction of rotation
  • Ideally suited for highly corrosive and abrasive media
  • Compact design

Advantages

  • Over 35 years of running reference in the field
  • Narrow cross-section allows the seal fitment in narrow stuffing boxes
  • Self cleaning, non-clogging design
  • Cost effective solution for corrosive and abrasive media
  • Long seal life

Operating range

Shaft diameter:
d = 25 … 100 mm (1" ... 3.94")
Pressure:
p = vacuum to 25 bar (362 PSI) (single ply)
p = vacuum to 50 bar (1,000 PSI) (double ply)
Temperature:
t = -75 °C ... +260 °C (-103 °F ... +500 °F)
Sliding velocity: vg = 25 m/s (82 ft/s)
Axial movement: ±0.8 mm

(Consult EB for applications outside above limits).

Materials

Seal ring: Carbon graphite resin impregnated,
Carbon graphite antimony impregnated
Mating ring: Silicon carbide, Tungsten carbide
Secondary seals: FKM, FFKM, PTFE
Bellows material:
Y12 = Titanium
Y13 = AM350
Y33 = AM350
Y17 = Hastelloy® C-4
Y19 = Alloy 20
Y37 = Inconel 625
Metal parts: SS 316, other materials on request.

Recommended piping plans

API Plans 01, 02, 03, 11, 12, 13, 14, 21, 22, 23, 31, 32, 41, 52, 53A, 53B, 53C, 54, 55, 61, 62, 65A, 65B, 66
